Equipment operation

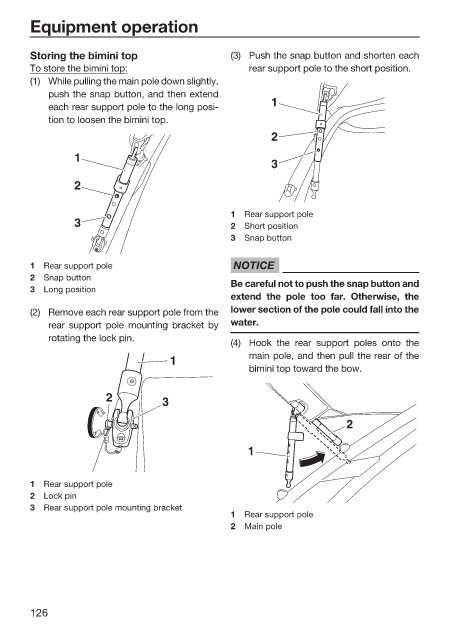

Storing the bimini top (3) Push the snap button and shorten each
To store the bimini top: rear support pole to the short position.
(1) While pulling the main pole down slightly,
push the snap button, and then extend
each rear support pole to the long posi- 1
tion to loosen the bimini top.
2

1
3
2

1 Rear support pole
3 2 Short position
3 Snap button

1 Rear support pole NOTICE
2 Snap button
Be careful not to push the snap button and
3 Long position
extend the pole too far. Otherwise, the
(2) Remove each rear support pole from the lower section of the pole could fall into the
rear support pole mounting bracket by water.
rotating the lock pin.
(4) Hook the rear support poles onto the
main pole, and then pull the rear of the
1
bimini top toward the bow.

2 3

2

1

1 Rear support pole
2 Lock pin
3 Rear support pole mounting bracket
1 Rear support pole
2 Main pole
