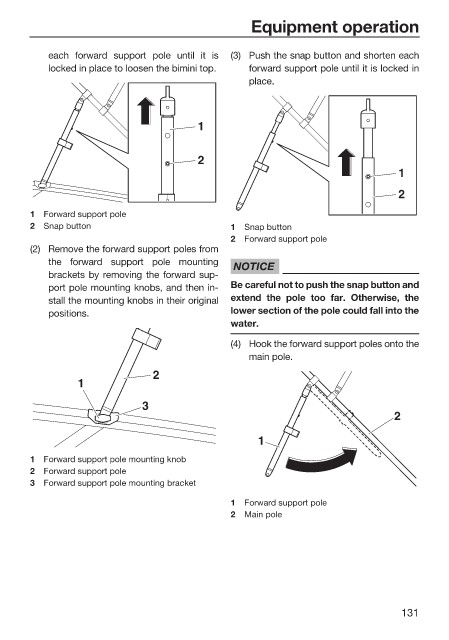

Equipment operation

each forward support pole until it is (3) Push the snap button and shorten each
locked in place to loosen the bimini top. forward support pole until it is locked in
place.

1

2
1
2
1 Forward support pole
2 Snap button 1 Snap button
2 Forward support pole
(2) Remove the forward support poles from
the forward support pole mounting NOTICE
brackets by removing the forward sup-
port pole mounting knobs, and then in- Be careful not to push the snap button and
stall the mounting knobs in their original extend the pole too far. Otherwise, the
positions. lower section of the pole could fall into the
water.

(4) Hook the forward support poles onto the
main pole.
2
1

3
2

1
1 Forward support pole mounting knob
2 Forward support pole
3 Forward support pole mounting bracket
1 Forward support pole
2 Main pole
