Equipment operation

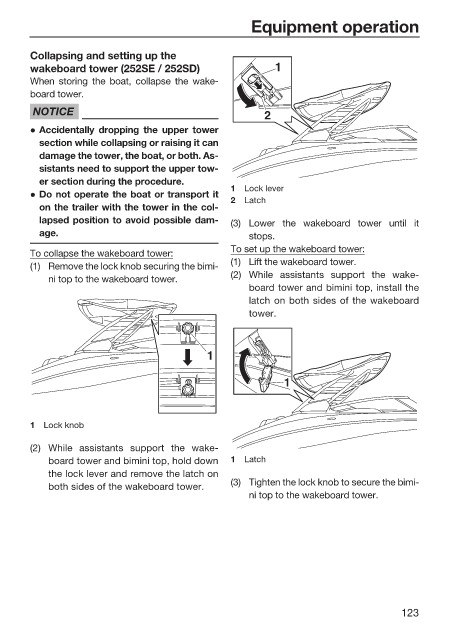

Collapsing and setting up the
wakeboard tower (252SE / 252SD) 1
When storing the boat, collapse the wake-
board tower.
NOTICE 2

z Accidentally dropping the upper tower
section while collapsing or raising it can
damage the tower, the boat, or both. As-
sistants need to support the upper tow-
er section during the procedure.
1 Lock lever
z Do not operate the boat or transport it
2 Latch
on the trailer with the tower in the col-
lapsed position to avoid possible dam- (3) Lower the wakeboard tower until it
age. stops.
To set up the wakeboard tower:
To collapse the wakeboard tower:
(1) Lift the wakeboard tower.
(1) Remove the lock knob securing the bimi-
(2) While assistants support the wake-
ni top to the wakeboard tower.
board tower and bimini top, install the
latch on both sides of the wakeboard
tower.

1

1

1 Lock knob

(2) While assistants support the wake-
board tower and bimini top, hold down 1 Latch
the lock lever and remove the latch on
(3) Tighten the lock knob to secure the bimi-
both sides of the wakeboard tower.
ni top to the wakeboard tower.

123
