Page 137 - LIT-18626-12-95

Equipment operation

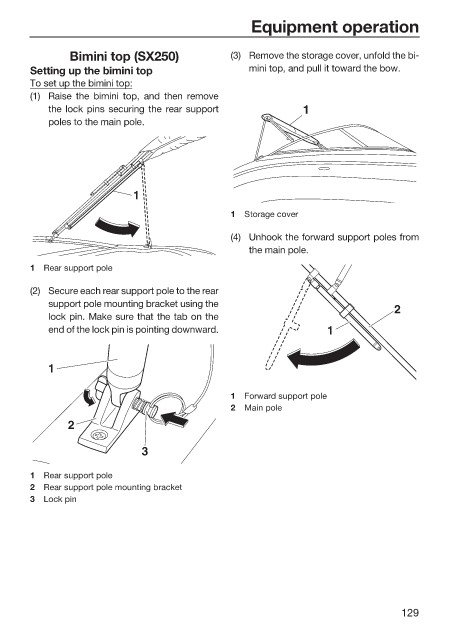

Bimini top (SX250) (3) Remove the storage cover, unfold the bi-
Setting up the bimini top mini top, and pull it toward the bow.
To set up the bimini top:
(1) Raise the bimini top, and then remove
the lock pins securing the rear support 1
poles to the main pole.

1
1 Storage cover

(4) Unhook the forward support poles from
the main pole.
1 Rear support pole
(2) Secure each rear support pole to the rear
support pole mounting bracket using the 2
lock pin. Make sure that the tab on the
end of the lock pin is pointing downward. 1

1

1 Forward support pole
2 Main pole
2

3

1 Rear support pole
2 Rear support pole mounting bracket
3 Lock pin

129
