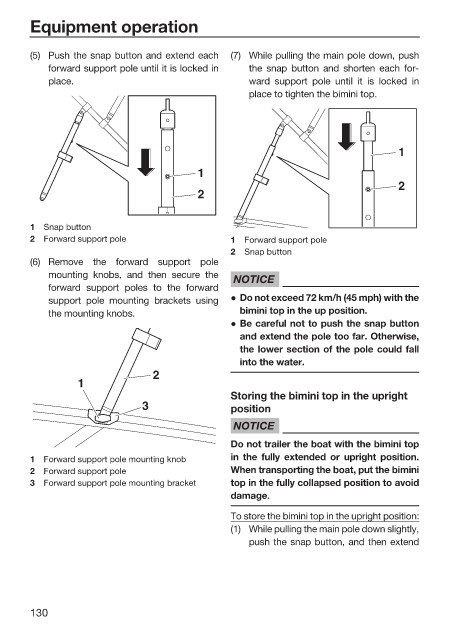

Equipment operation

(5) Push the snap button and extend each (7) While pulling the main pole down, push
forward support pole until it is locked in the snap button and shorten each for-
place. ward support pole until it is locked in
place to tighten the bimini top.

1

1
2
2

1 Snap button
2 Forward support pole 1 Forward support pole
2 Snap button
(6) Remove the forward support pole
mounting knobs, and then secure the NOTICE
forward support poles to the forward
support pole mounting brackets using z Do not exceed 72 km/h (45 mph) with the
the mounting knobs. bimini top in the up position.
z Be careful not to push the snap button
and extend the pole too far. Otherwise,
the lower section of the pole could fall
into the water.
2
1
Storing the bimini top in the upright
3 position
NOTICE
Do not trailer the boat with the bimini top
1 Forward support pole mounting knob in the fully extended or upright position.
2 Forward support pole When transporting the boat, put the bimini
3 Forward support pole mounting bracket top in the fully collapsed position to avoid
damage.

To store the bimini top in the upright position:
(1) While pulling the main pole down slightly,
push the snap button, and then extend

130
