Equipment operation

Bimini top (3) Insert the front support poles into the
(AR250 / 252S / 252XE) mounting holes in the wakeboard tower.

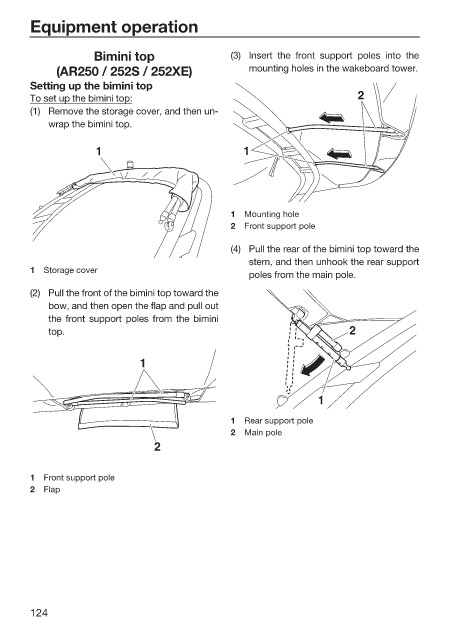

Setting up the bimini top
To set up the bimini top: 2
(1) Remove the storage cover, and then un-
wrap the bimini top.

1 1

1 Mounting hole
2 Front support pole
(4) Pull the rear of the bimini top toward the
stern, and then unhook the rear support
1 Storage cover
poles from the main pole.
(2) Pull the front of the bimini top toward the
bow, and then open the flap and pull out
the front support poles from the bimini
top. 2

1

1

1 Rear support pole
2 Main pole
2

1 Front support pole
2 Flap

124
