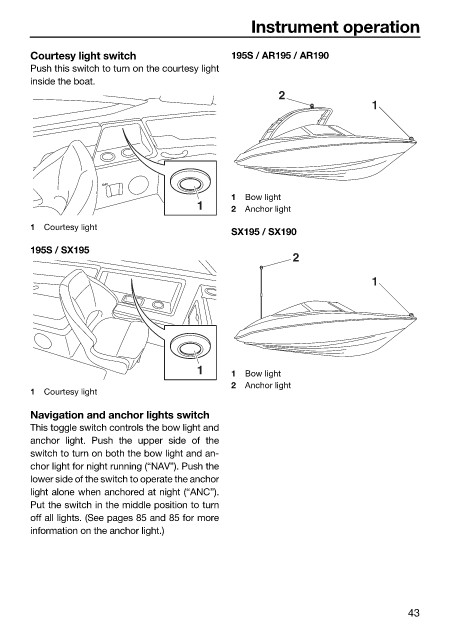

Instrument operation

Courtesy light switch 195S / AR195 / AR190
Push this switch to turn on the courtesy light
inside the boat.
2
1

1 Bow light
1 2 Anchor light
1 Courtesy light
SX195 / SX190
195S / SX195
2

1

1 1 Bow light
2 Anchor light
1 Courtesy light
Navigation and anchor lights switch
This toggle switch controls the bow light and
anchor light. Push the upper side of the
switch to turn on both the bow light and an-
chor light for night running (“NAV”). Push the
lower side of the switch to operate the anchor
light alone when anchored at night (“ANC”).
Put the switch in the middle position to turn
off all lights. (See pages 85 and 85 for more
information on the anchor light.)
