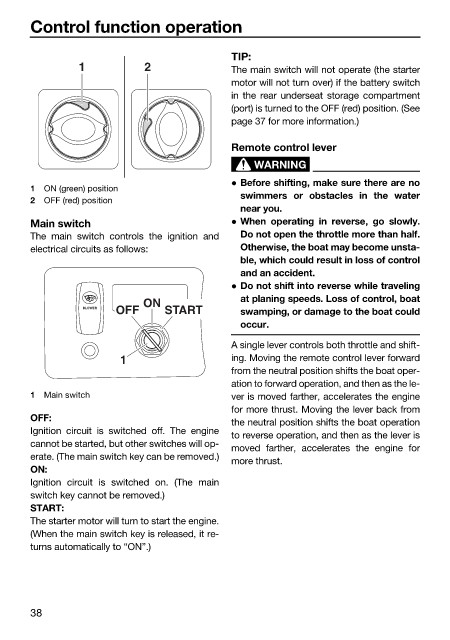

Control function operation

TIP:
1 2 The main switch will not operate (the starter
motor will not turn over) if the battery switch
in the rear underseat storage compartment
(port) is turned to the OFF (red) position. (See
page 37 for more information.)

Remote control lever
WARNING
 Before shifting, make sure there are no
1 ON (green) position
swimmers or obstacles in the water
2 OFF (red) position
near you.
Main switch  When operating in reverse, go slowly.
The main switch controls the ignition and Do not open the throttle more than half.
electrical circuits as follows: Otherwise, the boat may become unsta-
ble, which could result in loss of control
and an accident.
 Do not shift into reverse while traveling
ON at planing speeds. Loss of control, boat
OFF START swamping, or damage to the boat could
BLOWER
occur.
A single lever controls both throttle and shift-
1 ing. Moving the remote control lever forward
from the neutral position shifts the boat oper-
ation to forward operation, and then as the le-
1 Main switch ver is moved farther, accelerates the engine
for more thrust. Moving the lever back from
OFF:
the neutral position shifts the boat operation
Ignition circuit is switched off. The engine
to reverse operation, and then as the lever is
cannot be started, but other switches will op-
moved farther, accelerates the engine for
erate. (The main switch key can be removed.)
more thrust.
ON:
Ignition circuit is switched on. (The main
switch key cannot be removed.)
START:
The starter motor will turn to start the engine.
(When the main switch key is released, it re-
turns automatically to “ON”.)
