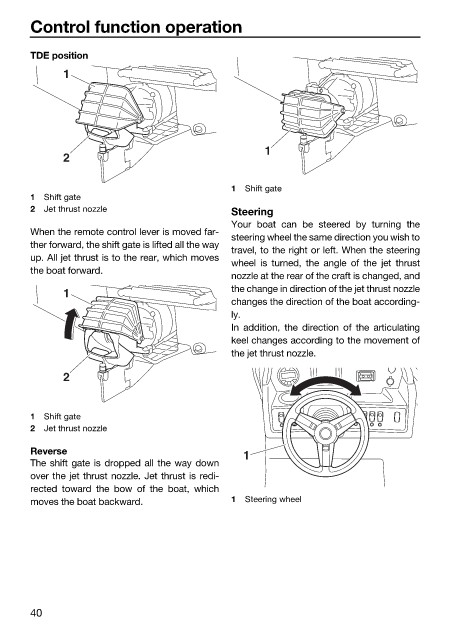

Control function operation

TDE position

1

1
2

1 Shift gate
1 Shift gate
2 Jet thrust nozzle Steering
Your boat can be steered by turning the
When the remote control lever is moved far-
steering wheel the same direction you wish to
ther forward, the shift gate is lifted all the way
travel, to the right or left. When the steering
up. All jet thrust is to the rear, which moves
wheel is turned, the angle of the jet thrust
the boat forward.
nozzle at the rear of the craft is changed, and
the change in direction of the jet thrust nozzle
1
changes the direction of the boat according-
ly.
In addition, the direction of the articulating
keel changes according to the movement of
the jet thrust nozzle.

2

1 Shift gate
2 Jet thrust nozzle

Reverse 1
The shift gate is dropped all the way down
over the jet thrust nozzle. Jet thrust is redi-
rected toward the bow of the boat, which
moves the boat backward. 1 Steering wheel
