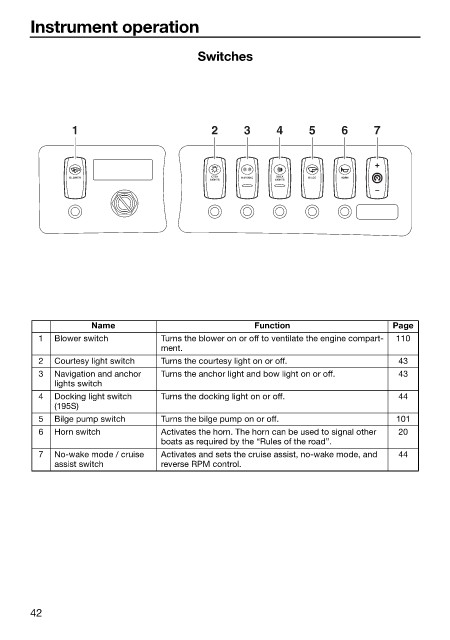

                        Instrument operation

                                                       Switches







                                1                         2     3     4     5     6     7




                                BLOWER                    CTSY  NAV/ANC  DOCK  BILGE  HORN
                                                          LIGHTS      LIGHTS














                                    Name                          Function                  Page
                          1  Blower switch       Turns the blower on or off to ventilate the engine compart-  110
                                                 ment.
                          2  Courtesy light switch  Turns the courtesy light on or off.      43
                          3  Navigation and anchor   Turns the anchor light and bow light on or off.  43
                             lights switch
                          4  Docking light switch   Turns the docking light on or off.       44
                             (195S)
                          5  Bilge pump switch   Turns the bilge pump on or off.            101
                          6  Horn switch         Activates the horn. The horn can be used to signal other   20
                                                 boats as required by the “Rules of the road”.
                          7  No-wake mode / cruise   Activates and sets the cruise assist, no-wake mode, and   44
                             assist switch       reverse RPM control.















                        42
