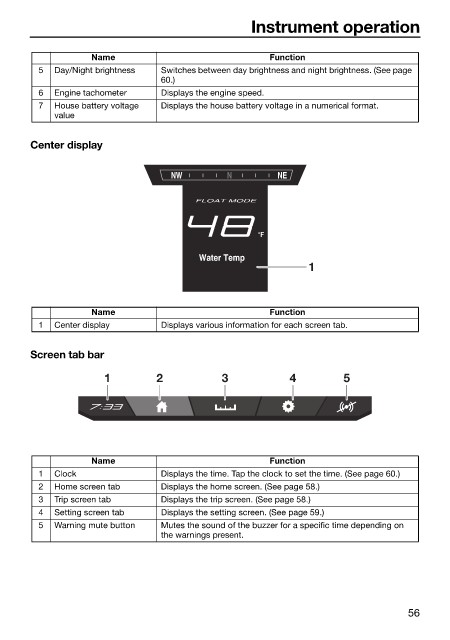

Instrument operation

Name Function
5 Day/Night brightness Switches between day brightness and night brightness. (See page
60.)
6 Engine tachometer Displays the engine speed.
7 House battery voltage Displays the house battery voltage in a numerical format.
value

Center display

NW N NE

FLOAT MODE

°F

Water Temp
1

Name Function
1 Center display Displays various information for each screen tab.

Screen tab bar

1 2 3 4 5

Name Function
1 Clock Displays the time. Tap the clock to set the time. (See page 60.)
2 Home screen tab Displays the home screen. (See page 58.)
3 Trip screen tab Displays the trip screen. (See page 58.)
4 Setting screen tab Displays the setting screen. (See page 59.)
5 Warning mute button Mutes the sound of the buzzer for a specific time depending on
the warnings present.

56
