Instrument operation

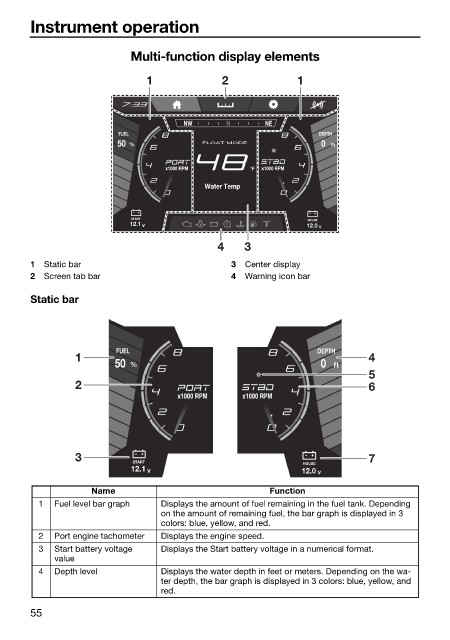

Multi-function display elements

1 2 1

NW N NE
FUEL DEPTH
50 % FLOAT MODE 0 Ft

°F
Water Temp

START HOUSE
12.1 V 12.0 V
4 3
1 Static bar 3 Center display
2 Screen tab bar 4 Warning icon bar

Static bar

NW NE
FUEL DEPTH
1 4
50 % 0 Ft
5
2 6

3 7
START
HOUSE
12.1 V 12.0 V
Name Function
1 Fuel level bar graph Displays the amount of fuel remaining in the fuel tank. Depending
on the amount of remaining fuel, the bar graph is displayed in 3
colors: blue, yellow, and red.
2 Port engine tachometer Displays the engine speed.
3 Start battery voltage Displays the Start battery voltage in a numerical format.
value
4 Depth level Displays the water depth in feet or meters. Depending on the wa-
ter depth, the bar graph is displayed in 3 colors: blue, yellow, and
red.
55
