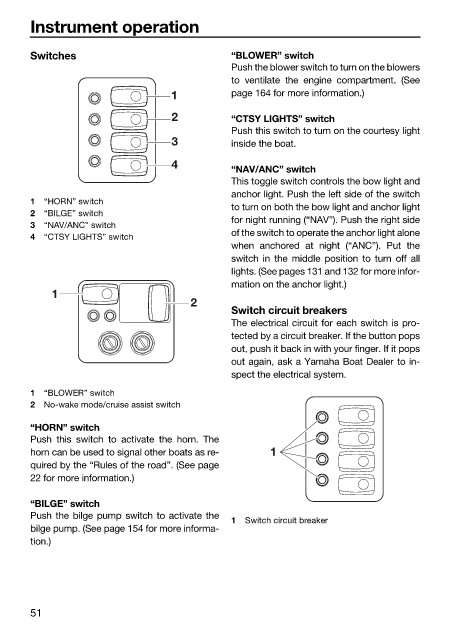

Instrument operation

Switches “BLOWER” switch
Push the blower switch to turn on the blowers
to ventilate the engine compartment. (See
1 page 164 for more information.)
2 “CTSY LIGHTS” switch
Push this switch to turn on the courtesy light
3 inside the boat.

4
“NAV/ANC” switch
This toggle switch controls the bow light and
anchor light. Push the left side of the switch
1 “HORN” switch
to turn on both the bow light and anchor light
2 “BILGE” switch
for night running (“NAV”). Push the right side
3 “NAV/ANC” switch
of the switch to operate the anchor light alone
4 “CTSY LIGHTS” switch
when anchored at night (“ANC”). Put the
switch in the middle position to turn off all
lights. (See pages 131 and 132 for more infor-
mation on the anchor light.)
1
2
Switch circuit breakers
The electrical circuit for each switch is pro-
tected by a circuit breaker. If the button pops
out, push it back in with your finger. If it pops
out again, ask a Yamaha Boat Dealer to in-
spect the electrical system.

1 “BLOWER” switch
2 No-wake mode/cruise assist switch

“HORN” switch
Push this switch to activate the horn. The
horn can be used to signal other boats as re- 1
quired by the “Rules of the road”. (See page
22 for more information.)

“BILGE” switch
Push the bilge pump switch to activate the
1 Switch circuit breaker
bilge pump. (See page 154 for more informa-
tion.)

51
