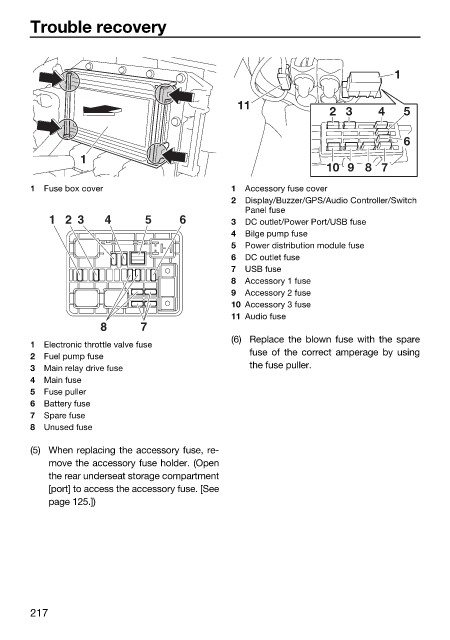

Trouble recovery

1

11
2 3 4 5

6
1
10 9 8 7

1 Fuse box cover 1 Accessory fuse cover
2 Display/Buzzer/GPS/Audio Controller/Switch
Panel fuse
12 3 4 5 6 3 DC outlet/Power Port/USB fuse
4 Bilge pump fuse
5 Power distribution module fuse
6 DC outlet fuse
7 USB fuse
8 Accessory 1 fuse
9 Accessory 2 fuse
10 Accessory 3 fuse
11 Audio fuse
8 7
(6) Replace the blown fuse with the spare
1 Electronic throttle valve fuse
fuse of the correct amperage by using
2 Fuel pump fuse
the fuse puller.
3 Main relay drive fuse
4 Main fuse
5 Fuse puller
6 Battery fuse
7 Spare fuse
8 Unused fuse
(5) When replacing the accessory fuse, re-
move the accessory fuse holder. (Open
the rear underseat storage compartment
[port] to access the accessory fuse. [See
page 125.])
