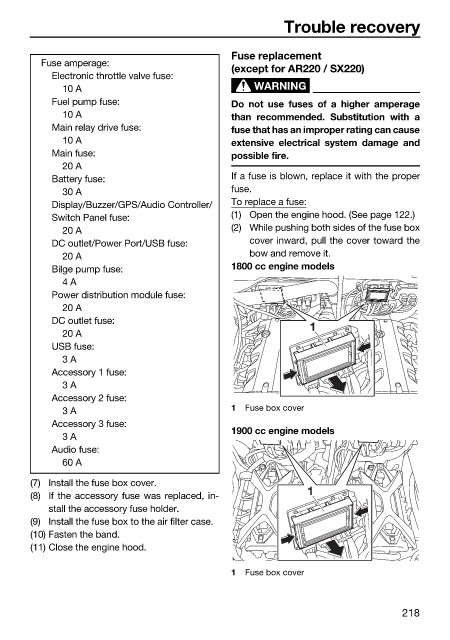

Trouble recovery

Fuse replacement
Fuse amperage:
(except for AR220 / SX220)
Electronic throttle valve fuse:
10 A WARNING
Fuel pump fuse: Do not use fuses of a higher amperage
10 A than recommended. Substitution with a
Main relay drive fuse: fuse that has an improper rating can cause
10 A extensive electrical system damage and
Main fuse: possible fire.
20 A
Battery fuse: If a fuse is blown, replace it with the proper
30 A fuse.
Display/Buzzer/GPS/Audio Controller/ To replace a fuse:
Switch Panel fuse: (1) Open the engine hood. (See page 122.)
20 A (2) While pushing both sides of the fuse box
DC outlet/Power Port/USB fuse: cover inward, pull the cover toward the
20 A bow and remove it.
Bilge pump fuse: 1800 cc engine models
4 A
Power distribution module fuse:
20 A
DC outlet fuse:
1
20 A
USB fuse:
3 A
Accessory 1 fuse:
3 A
Accessory 2 fuse:
3 A 1 Fuse box cover
Accessory 3 fuse:
1900 cc engine models
3 A
Audio fuse:
60 A
(7) Install the fuse box cover.
(8) If the accessory fuse was replaced, in- 1
stall the accessory fuse holder.
(9) Install the fuse box to the air filter case.
(10) Fasten the band.
(11) Close the engine hood.

1 Fuse box cover
