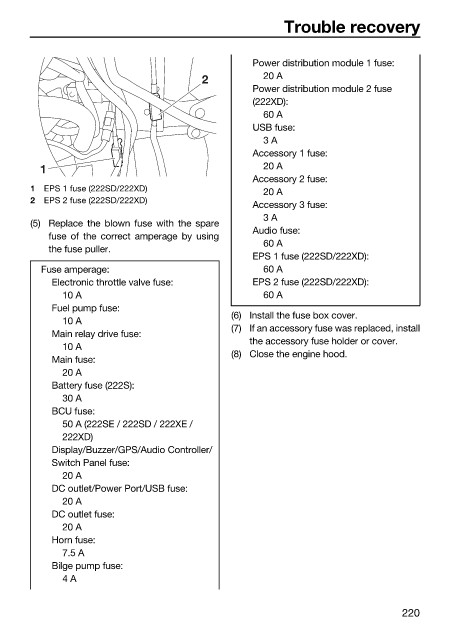

Trouble recovery

Power distribution module 1 fuse:
2 20 A
Power distribution module 2 fuse
(222XD):
60 A
USB fuse:
3 A
Accessory 1 fuse:
1 20 A
Accessory 2 fuse:
1 EPS 1 fuse (222SD/222XD)
20 A
2 EPS 2 fuse (222SD/222XD)
Accessory 3 fuse:
3 A
(5) Replace the blown fuse with the spare
Audio fuse:
fuse of the correct amperage by using
60 A
the fuse puller.
EPS 1 fuse (222SD/222XD):
Fuse amperage: 60 A
Electronic throttle valve fuse: EPS 2 fuse (222SD/222XD):
10 A 60 A
Fuel pump fuse:
(6) Install the fuse box cover.
10 A
(7) If an accessory fuse was replaced, install
Main relay drive fuse:
the accessory fuse holder or cover.
10 A
(8) Close the engine hood.
Main fuse:
20 A
Battery fuse (222S):
30 A
BCU fuse:
50 A (222SE / 222SD / 222XE /
222XD)
Display/Buzzer/GPS/Audio Controller/
Switch Panel fuse:
20 A
DC outlet/Power Port/USB fuse:
20 A
DC outlet fuse:
20 A
Horn fuse:
7.5 A
Bilge pump fuse:
4 A
