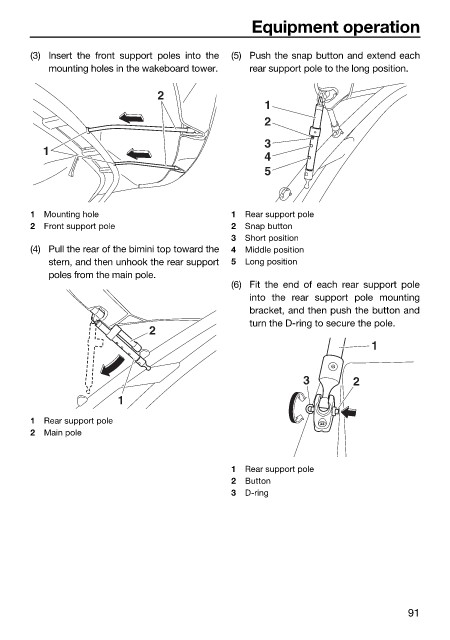

Equipment operation

(3) Insert the front support poles into the (5) Push the snap button and extend each
mounting holes in the wakeboard tower. rear support pole to the long position.

2
1
2

3
1
4
5

1 Mounting hole 1 Rear support pole
2 Front support pole 2 Snap button
3 Short position
(4) Pull the rear of the bimini top toward the 4 Middle position
stern, and then unhook the rear support 5 Long position
poles from the main pole.
(6) Fit the end of each rear support pole
into the rear support pole mounting
bracket, and then push the button and
turn the D-ring to secure the pole.
2
1

3 2
1

1 Rear support pole
2 Main pole

1 Rear support pole
2 Button
3 D-ring
