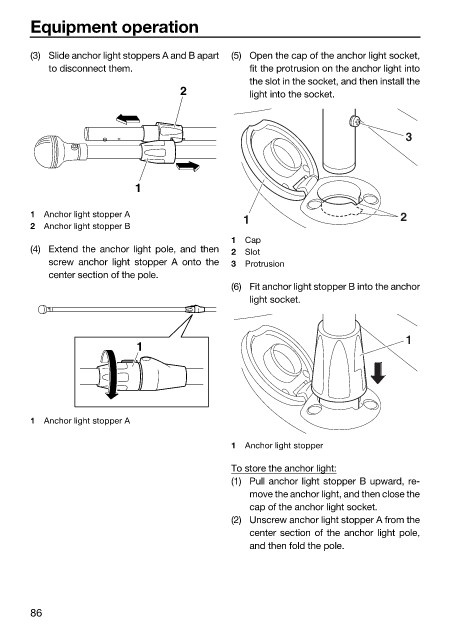

Equipment operation

(3) Slide anchor light stoppers A and B apart (5) Open the cap of the anchor light socket,
to disconnect them. fit the protrusion on the anchor light into
the slot in the socket, and then install the
2 light into the socket.

3

1

1 Anchor light stopper A 1 2
2 Anchor light stopper B
1 Cap
(4) Extend the anchor light pole, and then 2 Slot
screw anchor light stopper A onto the 3 Protrusion
center section of the pole.
(6) Fit anchor light stopper B into the anchor
light socket.

1
1

1 Anchor light stopper A

1 Anchor light stopper
To store the anchor light:
(1) Pull anchor light stopper B upward, re-
move the anchor light, and then close the
cap of the anchor light socket.
(2) Unscrew anchor light stopper A from the
center section of the anchor light pole,
and then fold the pole.
