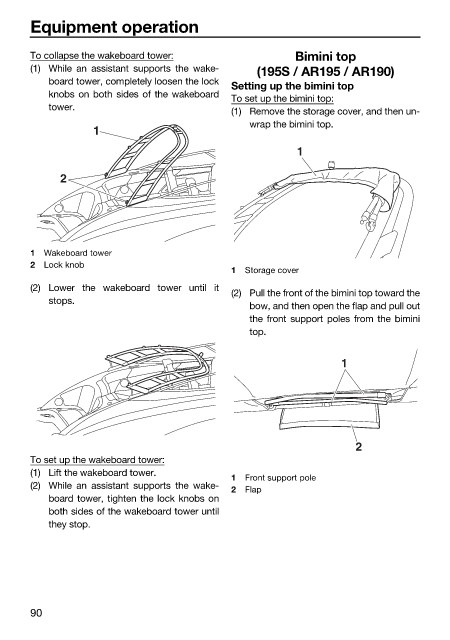

Equipment operation

To collapse the wakeboard tower: Bimini top
(1) While an assistant supports the wake- (195S / AR195 / AR190)
board tower, completely loosen the lock
Setting up the bimini top
knobs on both sides of the wakeboard
To set up the bimini top:
tower.
(1) Remove the storage cover, and then un-
wrap the bimini top.
1
1

2

1 Wakeboard tower
2 Lock knob
1 Storage cover
(2) Lower the wakeboard tower until it
(2) Pull the front of the bimini top toward the
stops.
bow, and then open the flap and pull out
the front support poles from the bimini
top.

1

2
To set up the wakeboard tower:
(1) Lift the wakeboard tower.
1 Front support pole
(2) While an assistant supports the wake-
2 Flap
board tower, tighten the lock knobs on
both sides of the wakeboard tower until
they stop.

90
