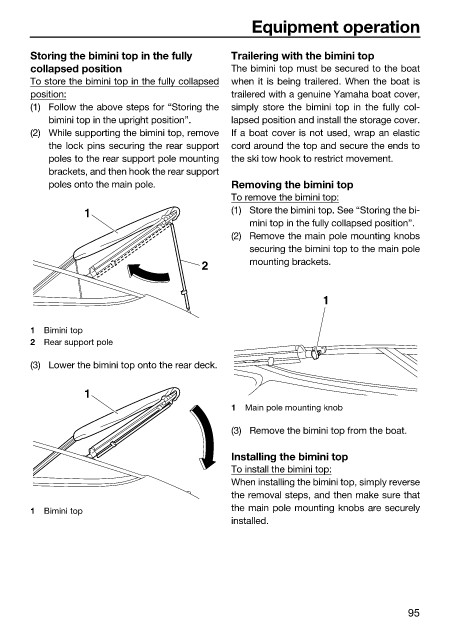

Equipment operation

Storing the bimini top in the fully Trailering with the bimini top
collapsed position The bimini top must be secured to the boat
To store the bimini top in the fully collapsed when it is being trailered. When the boat is
position: trailered with a genuine Yamaha boat cover,
(1) Follow the above steps for “Storing the simply store the bimini top in the fully col-
bimini top in the upright position”. lapsed position and install the storage cover.
(2) While supporting the bimini top, remove If a boat cover is not used, wrap an elastic
the lock pins securing the rear support cord around the top and secure the ends to
poles to the rear support pole mounting the ski tow hook to restrict movement.
brackets, and then hook the rear support
poles onto the main pole. Removing the bimini top
To remove the bimini top:
1 (1) Store the bimini top. See “Storing the bi-
mini top in the fully collapsed position”.
(2) Remove the main pole mounting knobs
securing the bimini top to the main pole
2 mounting brackets.

1

1 Bimini top
2 Rear support pole
(3) Lower the bimini top onto the rear deck.

1
1 Main pole mounting knob

(3) Remove the bimini top from the boat.

Installing the bimini top
To install the bimini top:
When installing the bimini top, simply reverse
the removal steps, and then make sure that
the main pole mounting knobs are securely
1 Bimini top
installed.

95
