Equipment operation

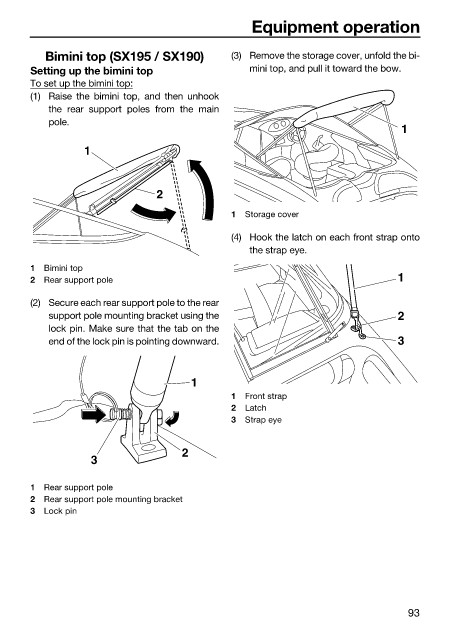

Bimini top (SX195 / SX190) (3) Remove the storage cover, unfold the bi-
Setting up the bimini top mini top, and pull it toward the bow.
To set up the bimini top:
(1) Raise the bimini top, and then unhook
the rear support poles from the main
pole.
1
1

2
1 Storage cover
(4) Hook the latch on each front strap onto
the strap eye.
1 Bimini top
2 Rear support pole 1
(2) Secure each rear support pole to the rear
support pole mounting bracket using the 2
lock pin. Make sure that the tab on the
end of the lock pin is pointing downward. 3

1
1 Front strap
2 Latch
3 Strap eye

2
3

1 Rear support pole
2 Rear support pole mounting bracket
3 Lock pin
