Description
AR195 / SX195 / AR190 / SX190
16 1 2 3 4
5
BLOWER
13 15
6
7
12 11 10 9 8
14 LIGHTS NAV/ANC BILGE HORN
CTSY
13 13 13 13

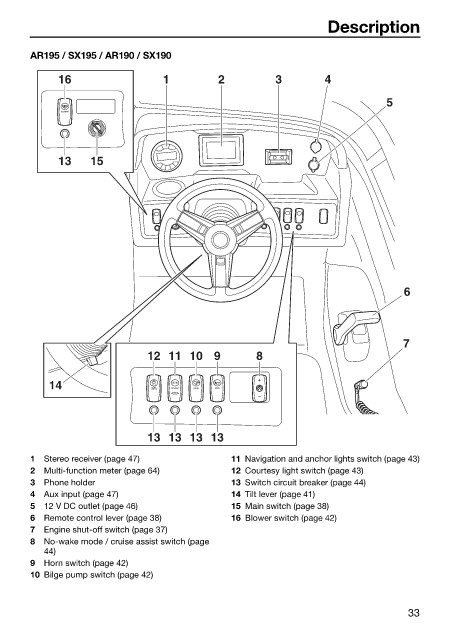

1 Stereo receiver (page 47) 11 Navigation and anchor lights switch (page 43)
2 Multi-function meter (page 64) 12 Courtesy light switch (page 43)
3 Phone holder 13 Switch circuit breaker (page 44)
4 Aux input (page 47) 14 Tilt lever (page 41)
5 12 V DC outlet (page 46) 15 Main switch (page 38)
6 Remote control lever (page 38) 16 Blower switch (page 42)
7 Engine shut-off switch (page 37)
8 No-wake mode / cruise assist switch (page
44)
9 Horn switch (page 42)
10 Bilge pump switch (page 42)
