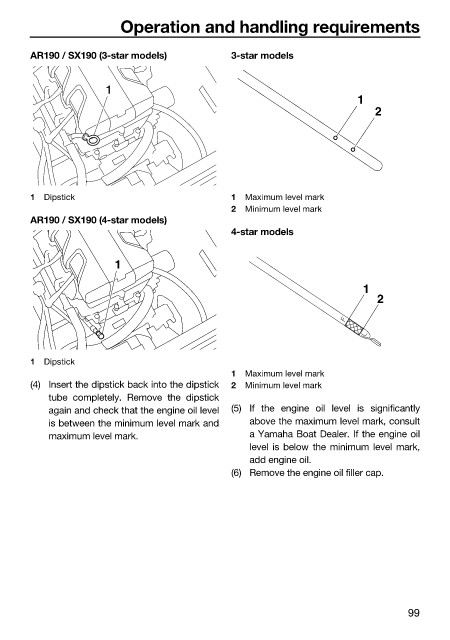

Operation and handling requirements

AR190 / SX190 (3-star models) 3-star models

1
1
2

1 Dipstick 1 Maximum level mark
2 Minimum level mark
AR190 / SX190 (4-star models)
4-star models

1
1
2

1 Dipstick
1 Maximum level mark
(4) Insert the dipstick back into the dipstick 2 Minimum level mark
tube completely. Remove the dipstick
again and check that the engine oil level (5) If the engine oil level is significantly
is between the minimum level mark and above the maximum level mark, consult
maximum level mark. a Yamaha Boat Dealer. If the engine oil
level is below the minimum level mark,
add engine oil.
(6) Remove the engine oil filler cap.

99
