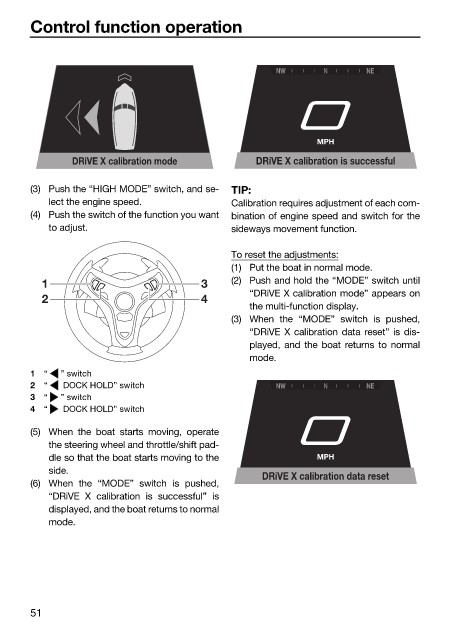

Control function operation

NW N NE

MPH
DRiVE X calibration mode DRiVE X calibration is successful

(3) Push the “HIGH MODE” switch, and se- TIP:
lect the engine speed. Calibration requires adjustment of each com-
(4) Push the switch of the function you want bination of engine speed and switch for the
to adjust. sideways movement function.

To reset the adjustments:
(1) Put the boat in normal mode.
1 3 (2) Push and hold the “MODE” switch until
“DRiVE X calibration mode” appears on
2 4
the multi-function display.
(3) When the “MODE” switch is pushed,
“DRiVE X calibration data reset” is dis-
played, and the boat returns to normal
mode.
1 “ ” switch
2 “ DOCK HOLD” switch NW N NE
3 “ ” switch
4 “ DOCK HOLD” switch
(5) When the boat starts moving, operate
the steering wheel and throttle/shift pad-
dle so that the boat starts moving to the MPH
side.
DRiVE X calibration data reset
(6) When the “MODE” switch is pushed,
“DRiVE X calibration is successful” is
displayed, and the boat returns to normal
mode.

51
