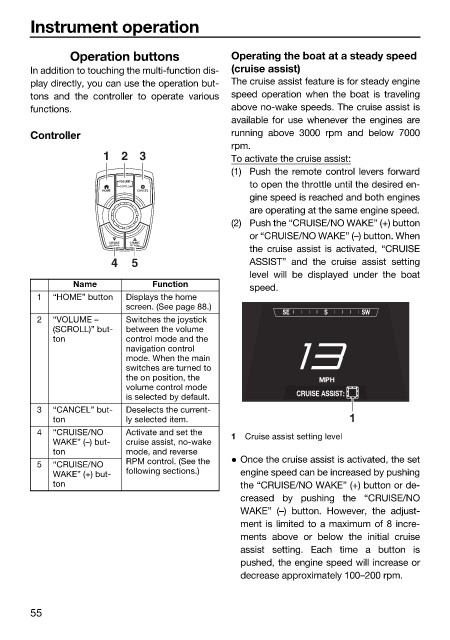

Instrument operation

Operation buttons Operating the boat at a steady speed
In addition to touching the multi-function dis- (cruise assist)
play directly, you can use the operation but- The cruise assist feature is for steady engine
tons and the controller to operate various speed operation when the boat is traveling
functions. above no-wake speeds. The cruise assist is
available for use whenever the engines are
Controller running above 3000 rpm and below 7000
rpm.
1 2 3 To activate the cruise assist:
(1) Push the remote control levers forward
VOLUME
(SCROLL) to open the throttle until the desired en-
HOME CANCEL
gine speed is reached and both engines
are operating at the same engine speed.
(2) Push the “CRUISE/NO WAKE” (+) button
or “CRUISE/NO WAKE” (–) button. When
CRUISE CRUISE
NO WAKE NO WAKE
the cruise assist is activated, “CRUISE
4 5 ASSIST” and the cruise assist setting
level will be displayed under the boat
Name Function
speed.
1 “HOME” button Displays the home
screen. (See page 88.)
SE S SW
2 “VOLUME – Switches the joystick
(SCROLL)” but- between the volume
ton control mode and the
navigation control
mode. When the main
switches are turned to
the on position, the MPH
volume control mode
is selected by default. CRUISE ASSIST:
3 “CANCEL” but- Deselects the current-
ton ly selected item. 1
4 “CRUISE/NO Activate and set the 1 Cruise assist setting level
WAKE” (–) but- cruise assist, no-wake
ton mode, and reverse
5 “CRUISE/NO RPM control. (See the  Once the cruise assist is activated, the set
WAKE” (+) but- following sections.) engine speed can be increased by pushing
ton the “CRUISE/NO WAKE” (+) button or de-
creased by pushing the “CRUISE/NO
WAKE” (–) button. However, the adjust-
ment is limited to a maximum of 8 incre-
ments above or below the initial cruise
assist setting. Each time a button is
pushed, the engine speed will increase or
decrease approximately 100–200 rpm.

55
