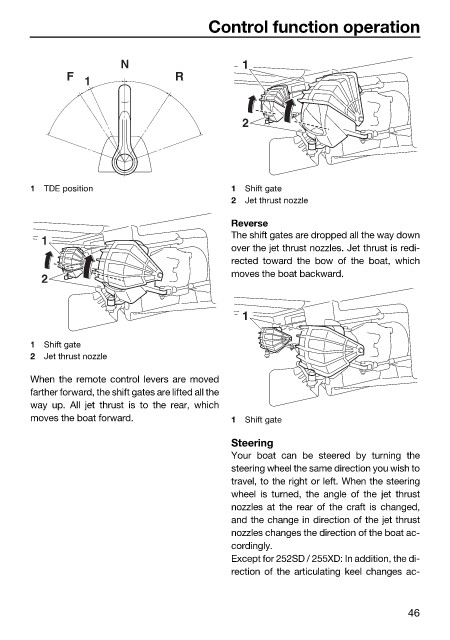

Control function operation

N 1
F 1 R

2

1 TDE position 1 Shift gate
2 Jet thrust nozzle

Reverse
The shift gates are dropped all the way down
1
over the jet thrust nozzles. Jet thrust is redi-
rected toward the bow of the boat, which
moves the boat backward.
2

1

1 Shift gate
2 Jet thrust nozzle

When the remote control levers are moved
farther forward, the shift gates are lifted all the
way up. All jet thrust is to the rear, which
moves the boat forward. 1 Shift gate
Steering
Your boat can be steered by turning the
steering wheel the same direction you wish to
travel, to the right or left. When the steering
wheel is turned, the angle of the jet thrust
nozzles at the rear of the craft is changed,
and the change in direction of the jet thrust
nozzles changes the direction of the boat ac-
cordingly.
Except for 252SD / 255XD: In addition, the di-
rection of the articulating keel changes ac-

46
