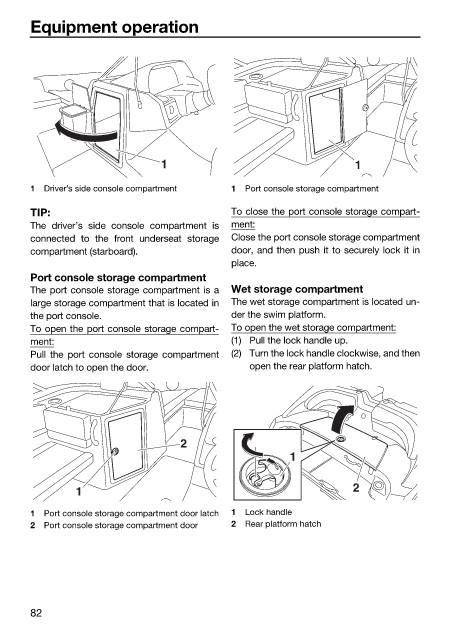

Equipment operation

1 1

1 Driver’s side console compartment 1 Port console storage compartment

TIP: To close the port console storage compart-
The driver’s side console compartment is ment:
connected to the front underseat storage Close the port console storage compartment
compartment (starboard). door, and then push it to securely lock it in
place.
Port console storage compartment
The port console storage compartment is a Wet storage compartment
large storage compartment that is located in The wet storage compartment is located un-
the port console. der the swim platform.
To open the port console storage compart- To open the wet storage compartment:
ment: (1) Pull the lock handle up.
Pull the port console storage compartment (2) Turn the lock handle clockwise, and then
door latch to open the door. open the rear platform hatch.

2
1

1 2

1 Port console storage compartment door latch 1 Lock handle
2 Port console storage compartment door 2 Rear platform hatch

82
