Equipment operation

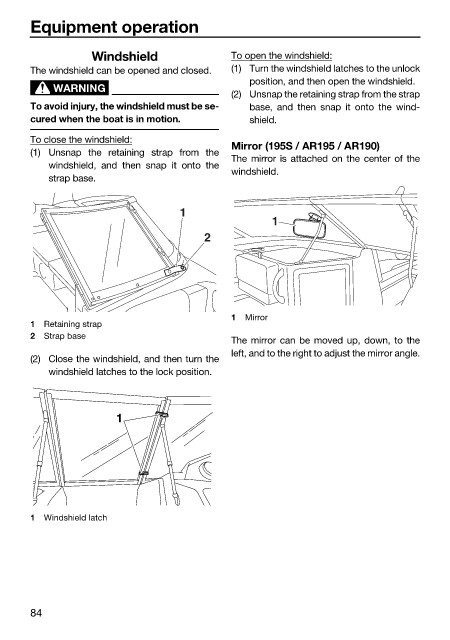

Windshield To open the windshield:
The windshield can be opened and closed. (1) Turn the windshield latches to the unlock
position, and then open the windshield.
WARNING
(2) Unsnap the retaining strap from the strap
To avoid injury, the windshield must be se- base, and then snap it onto the wind-
cured when the boat is in motion. shield.
To close the windshield:
Mirror (195S / AR195 / AR190)
(1) Unsnap the retaining strap from the
The mirror is attached on the center of the
windshield, and then snap it onto the
windshield.
strap base.

1
1
2

1 Mirror
1 Retaining strap
2 Strap base
The mirror can be moved up, down, to the
left, and to the right to adjust the mirror angle.
(2) Close the windshield, and then turn the
windshield latches to the lock position.

1

1 Windshield latch

84
