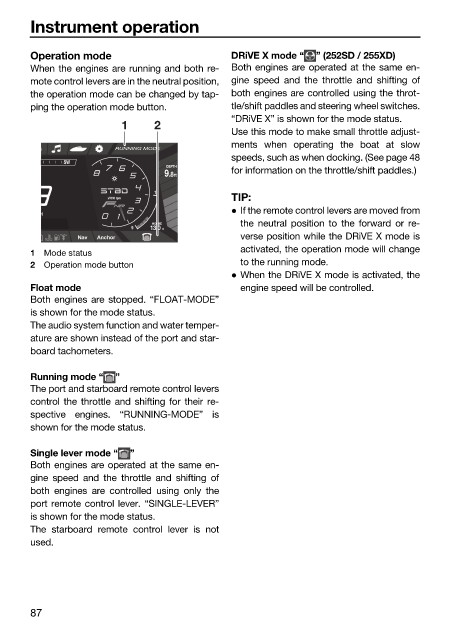

Instrument operation

Operation mode DRiVE X mode “ ” (252SD / 255XD)
When the engines are running and both re- Both engines are operated at the same en-
mote control levers are in the neutral position, gine speed and the throttle and shifting of
the operation mode can be changed by tap- both engines are controlled using the throt-
ping the operation mode button. tle/shift paddles and steering wheel switches.
“DRiVE X” is shown for the mode status.
1 2
Use this mode to make small throttle adjust-
ments when operating the boat at slow
RUNNING MODE
speeds, such as when docking. (See page 48
NE
SW
DEPTH for information on the throttle/shift paddles.)
.8 9 ft
19
x1000 rpm TIP:
 If the remote control levers are moved from
H
HOUSE the neutral position to the forward or re-
9 13.0 V
Nav Anchor verse position while the DRiVE X mode is
activated, the operation mode will change
1 Mode status
2 Operation mode button to the running mode.
 When the DRiVE X mode is activated, the
Float mode engine speed will be controlled.
Both engines are stopped. “FLOAT-MODE”
is shown for the mode status.
The audio system function and water temper-
ature are shown instead of the port and star-
board tachometers.

Running mode “ ”
The port and starboard remote control levers
control the throttle and shifting for their re-
spective engines. “RUNNING-MODE” is
shown for the mode status.

Single lever mode “ ”
Both engines are operated at the same en-
gine speed and the throttle and shifting of
both engines are controlled using only the
port remote control lever. “SINGLE-LEVER”
is shown for the mode status.
The starboard remote control lever is not
used.

87
