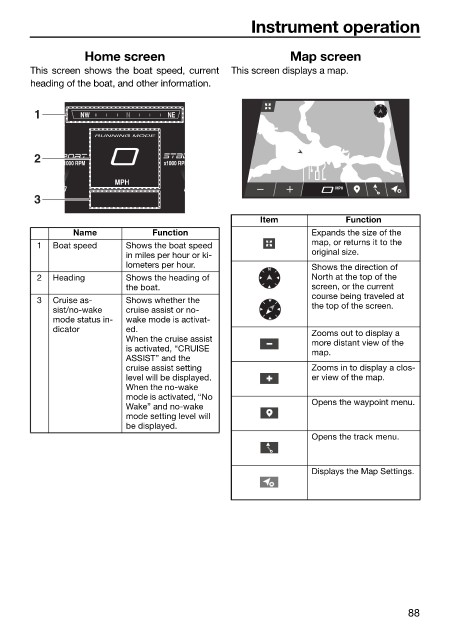

Instrument operation

Home screen Map screen
This screen shows the boat speed, current This screen displays a map.
heading of the boat, and other information.

1 NW N NE

RUNNING MODE
2

MPH
MPH
3
Item Function
Name Function Expands the size of the
1 Boat speed Shows the boat speed map, or returns it to the
in miles per hour or ki- original size.
lometers per hour. Shows the direction of
2 Heading Shows the heading of North at the top of the
the boat. screen, or the current
course being traveled at
3 Cruise as- Shows whether the
sist/no-wake cruise assist or no- the top of the screen.
mode status in- wake mode is activat-
dicator ed. Zooms out to display a
When the cruise assist more distant view of the
is activated, “CRUISE map.
ASSIST” and the
cruise assist setting Zooms in to display a clos-
level will be displayed. er view of the map.
When the no-wake
mode is activated, “No
Wake” and no-wake Opens the waypoint menu.
mode setting level will
be displayed.
Opens the track menu.

Displays the Map Settings.
