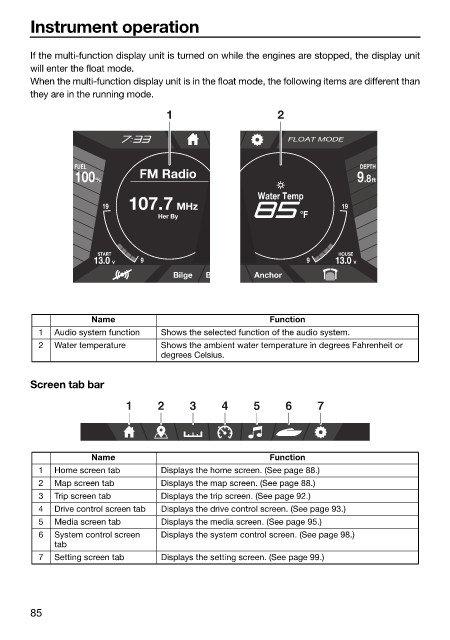

Instrument operation

If the multi-function display unit is turned on while the engines are stopped, the display unit
will enter the float mode.
When the multi-function display unit is in the float mode, the following items are different than
they are in the running mode.
1 2

FLOAT MODE

FUEL DEPTH
100 % FM Radio .8 9 ft

Water Temp
19 107.7 MHz 19
Her By °F

START HOUSE
13.0 V 9 9 13.0 V
Bilge B Anchor

Name Function
1 Audio system function Shows the selected function of the audio system.
2 Water temperature Shows the ambient water temperature in degrees Fahrenheit or
degrees Celsius.

Screen tab bar
1 2 3 4 5 6 7

Name Function
1 Home screen tab Displays the home screen. (See page 88.)
2 Map screen tab Displays the map screen. (See page 88.)
3 Trip screen tab Displays the trip screen. (See page 92.)
4 Drive control screen tab Displays the drive control screen. (See page 93.)
5 Media screen tab Displays the media screen. (See page 95.)
6 System control screen Displays the system control screen. (See page 98.)
tab
7 Setting screen tab Displays the setting screen. (See page 99.)

85
