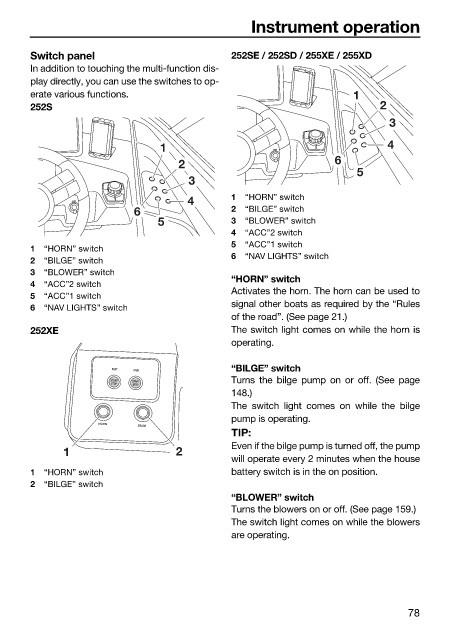

Instrument operation

Switch panel 252SE / 252SD / 255XE / 255XD
In addition to touching the multi-function dis-
play directly, you can use the switches to op-
erate various functions. 1
252S 2
3

1 4
2 6
5
3
4 1 “HORN” switch
6 2 “BILGE” switch
5 3 “BLOWER” switch
4 “ACC”2 switch
5 “ACC”1 switch
1 “HORN” switch
6 “NAV LIGHTS” switch
2 “BILGE” switch
3 “BLOWER” switch
“HORN” switch
4 “ACC”2 switch
Activates the horn. The horn can be used to
5 “ACC”1 switch
signal other boats as required by the “Rules
6 “NAV LIGHTS” switch
of the road”. (See page 21.)
252XE The switch light comes on while the horn is
operating.
“BILGE” switch
Turns the bilge pump on or off. (See page
148.)
The switch light comes on while the bilge
pump is operating.
HORN
BILGE
TIP:
Even if the bilge pump is turned off, the pump
1 2
will operate every 2 minutes when the house
1 “HORN” switch battery switch is in the on position.
2 “BILGE” switch
“BLOWER” switch
Turns the blowers on or off. (See page 159.)
The switch light comes on while the blowers
are operating.
