Instrument operation

Warnings
If a malfunction or fault occurs, a warning buzzer will sound and a warning icon and warning
message will be displayed on the center display.
If the displayed warning message includes instructions, follow those instructions. If you have
any questions, consult a Yamaha Boat Dealer.

NW
NW N N NENE
F FUEL DEPTH
DEPTHTHH
F FUEL
Check Engine !
1 50 50 50 5 % % % F FLOAT MODE E 0 0 0 Ft F F Ft t t
O
L
O
D
AT M
2 Consult YAMAHA dealer.
°F °F
OK
T
Water Tempp
ater
W
em
TAR
U
HO
S STARTT HOUSEE S
1.
1 11.8 8 V V 11. 8 V V
11.8
h
nc
N
A
Bil
Blower
ge
Bilge Bl ower Navav Anchor o r

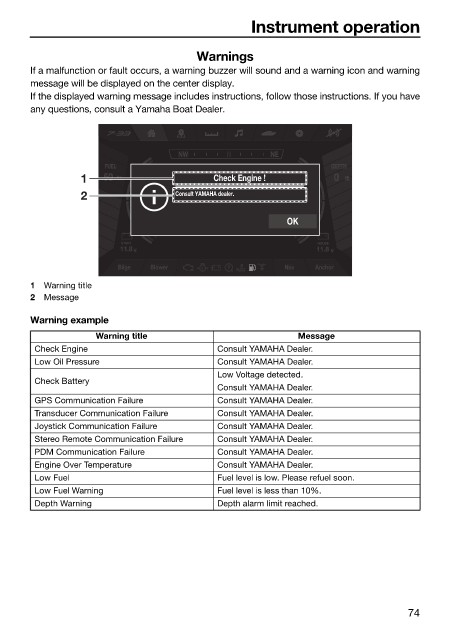

1 Warning title
2 Message
Warning example
Warning title Message
Check Engine Consult YAMAHA Dealer.
Low Oil Pressure Consult YAMAHA Dealer.
Low Voltage detected.
Check Battery
Consult YAMAHA Dealer.
GPS Communication Failure Consult YAMAHA Dealer.
Transducer Communication Failure Consult YAMAHA Dealer.
Joystick Communication Failure Consult YAMAHA Dealer.
Stereo Remote Communication Failure Consult YAMAHA Dealer.
PDM Communication Failure Consult YAMAHA Dealer.
Engine Over Temperature Consult YAMAHA Dealer.
Low Fuel Fuel level is low. Please refuel soon.
Low Fuel Warning Fuel level is less than 10%.
Depth Warning Depth alarm limit reached.
