Instrument operation
Helm controls (except for AR250 / SX250)
1 2 2 3
252SE / 252SD
252S / 255XE / 255XD
4 4 5
5 6
6
7
7
9 9
8 8
10 11
252XE
12
HORN
BILGE
4 5

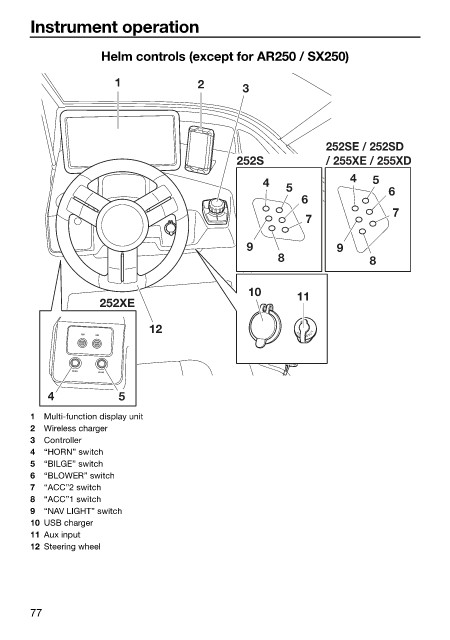

1 Multi-function display unit
2 Wireless charger
3 Controller
4 “HORN” switch
5 “BILGE” switch
6 “BLOWER” switch
7 “ACC”2 switch
8 “ACC”1 switch
9 “NAV LIGHT” switch
10 USB charger
11 Aux input
12 Steering wheel
