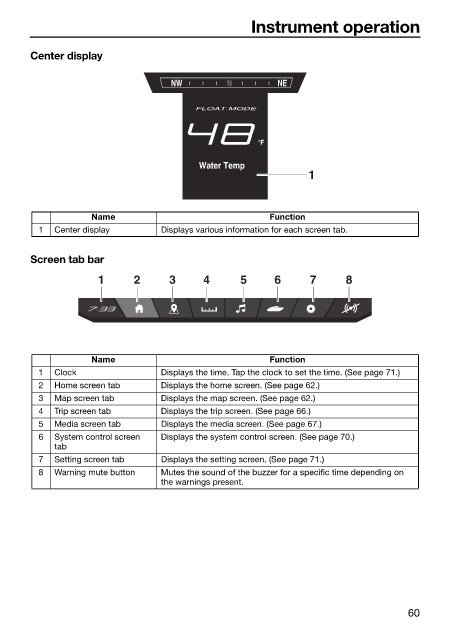

Instrument operation
Center display
NW N NE
FLOAT MODE
°F
Water Temp
1
Name Function
1 Center display Displays various information for each screen tab.
Screen tab bar
1 2 3 4 5 6 7 8
Name Function
1 Clock Displays the time. Tap the clock to set the time. (See page 71.)
2 Home screen tab Displays the home screen. (See page 62.)
3 Map screen tab Displays the map screen. (See page 62.)
4 Trip screen tab Displays the trip screen. (See page 66.)
5 Media screen tab Displays the media screen. (See page 67.)
6 System control screen Displays the system control screen. (See page 70.)
tab
7 Setting screen tab Displays the setting screen. (See page 71.)
8 Warning mute button Mutes the sound of the buzzer for a specific time depending on
the warnings present.
