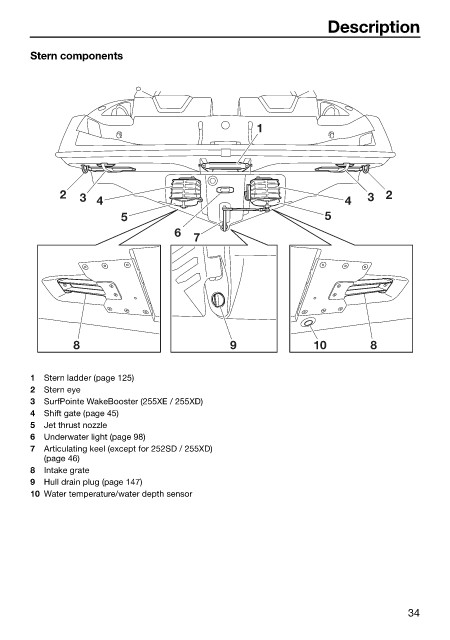

                                                                                Description

                        Stern components







                                                                  1






                              2  3   4                                             4   3  2
                                         5                                     5
                                                   6
                                                       7










                                8                            9               10         8


                        1  Stern ladder (page 125)
                        2  Stern eye
                        3  SurfPointe WakeBooster (255XE / 255XD)
                        4  Shift gate (page 45)
                        5  Jet thrust nozzle
                        6  Underwater light (page 98)
                        7  Articulating keel (except for 252SD / 255XD)
                           (page 46)
                        8  Intake grate
                        9  Hull drain plug (page 147)
                        10 Water temperature/water depth sensor
