Description
252SE / 252SD / 252XE / 255XE / 255XD
1
4 5
6
HORN
BILGE
7
2 3 8
9
10
11
13
12
20
18 19 15
21
16 14
17

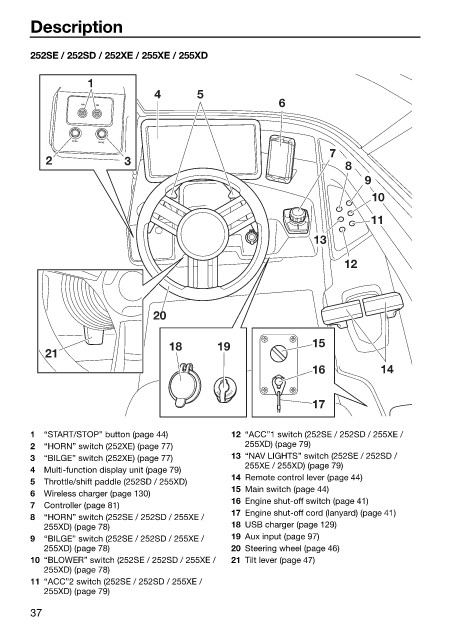

1 “START/STOP” button (page 44) 12 “ACC”1 switch (252SE / 252SD / 255XE /
2 “HORN” switch (252XE) (page 77) 255XD) (page 79)
3 “BILGE” switch (252XE) (page 77) 13 “NAV LIGHTS” switch (252SE / 252SD /
255XE / 255XD) (page 79)
4 Multi-function display unit (page 79)
14 Remote control lever (page 44)
5 Throttle/shift paddle (252SD / 255XD)
15 Main switch (page 44)
6 Wireless charger (page 130)
16 Engine shut-off switch (page 41)
7 Controller (page 81)
17 Engine shut-off cord (lanyard) (page 41)
8 “HORN” switch (252SE / 252SD / 255XE /
255XD) (page 78) 18 USB charger (page 129)
9 “BILGE” switch (252SE / 252SD / 255XE / 19 Aux input (page 97)
255XD) (page 78) 20 Steering wheel (page 46)
10 “BLOWER” switch (252SE / 252SD / 255XE / 21 Tilt lever (page 47)
255XD) (page 78)
11 “ACC”2 switch (252SE / 252SD / 255XE /
255XD) (page 79)
