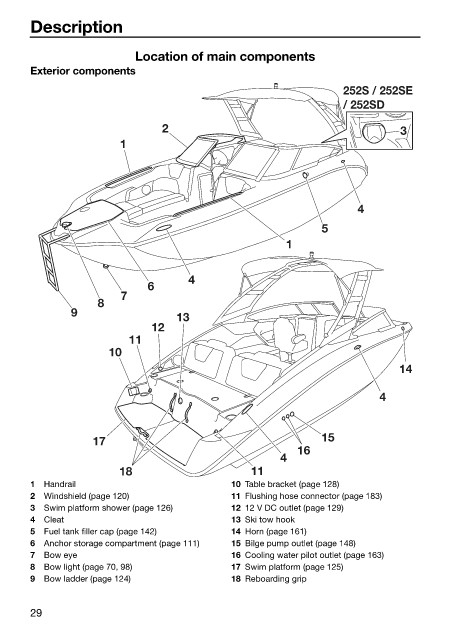

Description
Location of main components
Exterior components
252S / 252SE
/ 252SD
2 3
1
4
5
1
4
6
7
8
9 13
12
11
10
14
4
17 15
16
4
18 11
1 Handrail 10 Table bracket (page 128)
2 Windshield (page 120) 11 Flushing hose connector (page 183)
3 Swim platform shower (page 126) 12 12 V DC outlet (page 129)
4 Cleat 13 Ski tow hook
5 Fuel tank filler cap (page 142) 14 Horn (page 161)
6 Anchor storage compartment (page 111) 15 Bilge pump outlet (page 148)
7 Bow eye 16 Cooling water pilot outlet (page 163)
8 Bow light (page 70, 98) 17 Swim platform (page 125)
9 Bow ladder (page 124) 18 Reboarding grip
