Description

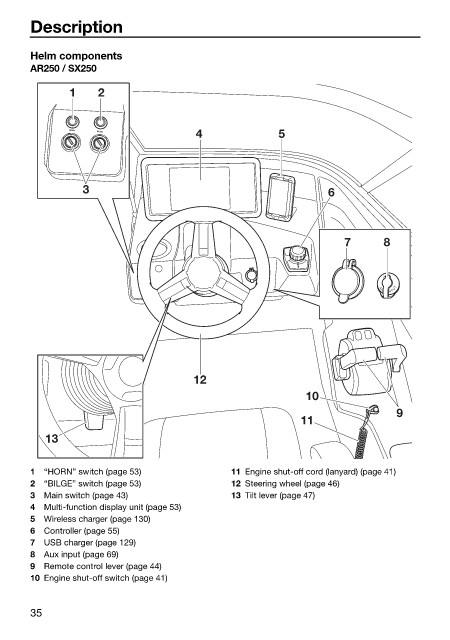

Helm components
AR250 / SX250

1 2

4 5
HORN
BILGE

3 6

7 8

12
10
9
11
13

1 “HORN” switch (page 53) 11 Engine shut-off cord (lanyard) (page 41)
2 “BILGE” switch (page 53) 12 Steering wheel (page 46)
3 Main switch (page 43) 13 Tilt lever (page 47)
4 Multi-function display unit (page 53)
5 Wireless charger (page 130)
6 Controller (page 55)
7 USB charger (page 129)
8 Aux input (page 69)
9 Remote control lever (page 44)
10 Engine shut-off switch (page 41)
