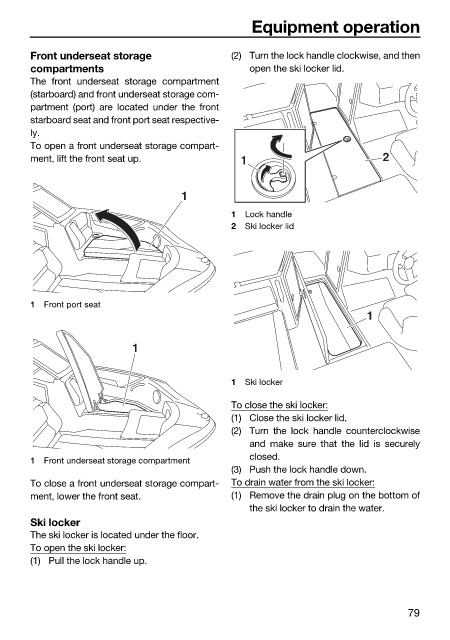

Equipment operation

Front underseat storage (2) Turn the lock handle clockwise, and then
compartments open the ski locker lid.
The front underseat storage compartment
(starboard) and front underseat storage com-
partment (port) are located under the front
starboard seat and front port seat respective-
ly.
To open a front underseat storage compart-
ment, lift the front seat up. 1 2

1
1 Lock handle
2 Ski locker lid

1 Front port seat
1

1

1 Ski locker
To close the ski locker:
(1) Close the ski locker lid.
(2) Turn the lock handle counterclockwise
and make sure that the lid is securely
closed.
1 Front underseat storage compartment
(3) Push the lock handle down.
To close a front underseat storage compart- To drain water from the ski locker:
ment, lower the front seat. (1) Remove the drain plug on the bottom of
the ski locker to drain the water.
Ski locker
The ski locker is located under the floor.
To open the ski locker:
(1) Pull the lock handle up.

79
