Instrument operation

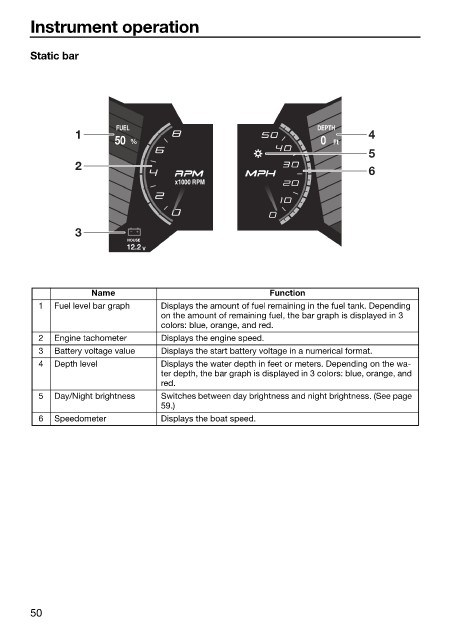

Static bar

NW NE
FUEL DEPTH
1 4
50 % 0 Ft
5
2
6

3
HOUSE
12.2 V

Name Function
1 Fuel level bar graph Displays the amount of fuel remaining in the fuel tank. Depending
on the amount of remaining fuel, the bar graph is displayed in 3
colors: blue, orange, and red.
2 Engine tachometer Displays the engine speed.
3 Battery voltage value Displays the start battery voltage in a numerical format.
4 Depth level Displays the water depth in feet or meters. Depending on the wa-
ter depth, the bar graph is displayed in 3 colors: blue, orange, and
red.
5 Day/Night brightness Switches between day brightness and night brightness. (See page
59.)
6 Speedometer Displays the boat speed.
