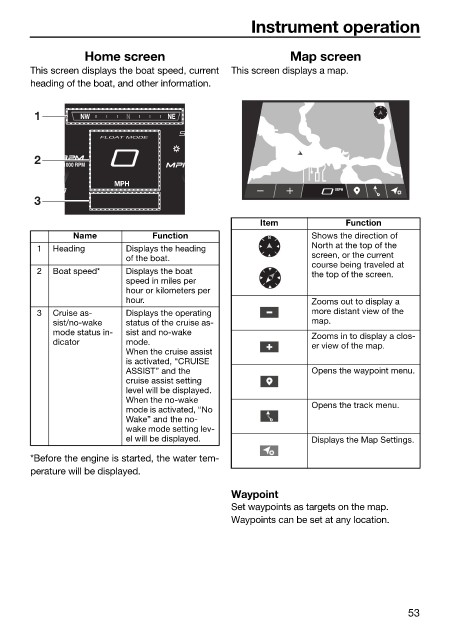

Instrument operation

Home screen Map screen
This screen displays the boat speed, current This screen displays a map.
heading of the boat, and other information.

1 NW N NE

FLOAT MODE

2
MPH
MPH
3

Item Function
Name Function Shows the direction of
1 Heading Displays the heading North at the top of the
of the boat. screen, or the current
course being traveled at
2 Boat speed* Displays the boat the top of the screen.
speed in miles per
hour or kilometers per
hour. Zooms out to display a
3 Cruise as- Displays the operating more distant view of the
sist/no-wake status of the cruise as- map.
mode status in- sist and no-wake Zooms in to display a clos-
dicator mode. er view of the map.
When the cruise assist
is activated, “CRUISE
ASSIST” and the Opens the waypoint menu.
cruise assist setting
level will be displayed.
When the no-wake
mode is activated, “No Opens the track menu.
Wake” and the no-
wake mode setting lev-
el will be displayed. Displays the Map Settings.
*Before the engine is started, the water tem-
perature will be displayed.
Waypoint
Set waypoints as targets on the map.
Waypoints can be set at any location.

53
