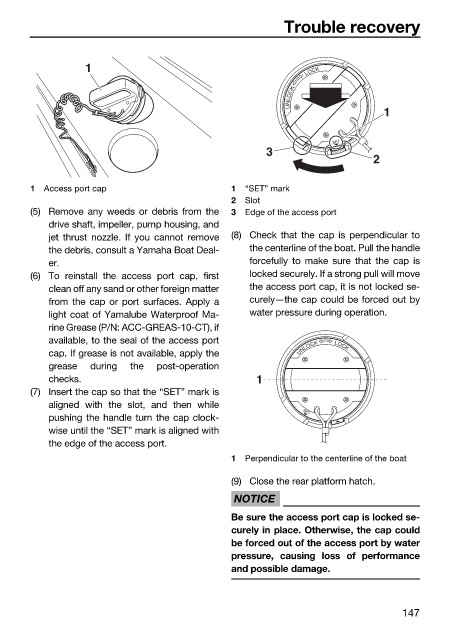

Trouble recovery

1

1

3
2

1 Access port cap 1 “SET” mark
2 Slot
(5) Remove any weeds or debris from the 3 Edge of the access port
drive shaft, impeller, pump housing, and
jet thrust nozzle. If you cannot remove (8) Check that the cap is perpendicular to
the debris, consult a Yamaha Boat Deal- the centerline of the boat. Pull the handle
er. forcefully to make sure that the cap is
(6) To reinstall the access port cap, first locked securely. If a strong pull will move
clean off any sand or other foreign matter the access port cap, it is not locked se-
from the cap or port surfaces. Apply a curely—the cap could be forced out by
light coat of Yamalube Waterproof Ma- water pressure during operation.
rine Grease (P/N: ACC-GREAS-10-CT), if
available, to the seal of the access port
cap. If grease is not available, apply the
grease during the post-operation
checks. 1
(7) Insert the cap so that the “SET” mark is
aligned with the slot, and then while
pushing the handle turn the cap clock-
wise until the “SET” mark is aligned with
the edge of the access port.
1 Perpendicular to the centerline of the boat

(9) Close the rear platform hatch.
NOTICE
Be sure the access port cap is locked se-
curely in place. Otherwise, the cap could
be forced out of the access port by water
pressure, causing loss of performance
and possible damage.

147
