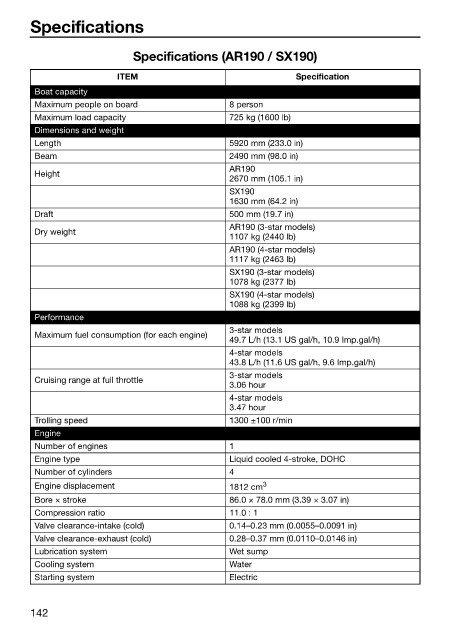

Specifications

Specifications (AR190 / SX190)

ITEM Specification
Boat capacity
Maximum people on board 8 person
Maximum load capacity 725 kg (1600 lb)
Dimensions and weight
Length 5920 mm (233.0 in)
Beam 2490 mm (98.0 in)
AR190
Height
2670 mm (105.1 in)
SX190
1630 mm (64.2 in)
Draft 500 mm (19.7 in)
AR190 (3-star models)
Dry weight
1107 kg (2440 lb)
AR190 (4-star models)
1117 kg (2463 lb)
SX190 (3-star models)
1078 kg (2377 lb)
SX190 (4-star models)
1088 kg (2399 lb)
Performance
3-star models
Maximum fuel consumption (for each engine)
49.7 L/h (13.1 US gal/h, 10.9 Imp.gal/h)
4-star models
43.8 L/h (11.6 US gal/h, 9.6 Imp.gal/h)
3-star models
Cruising range at full throttle
3.06 hour
4-star models
3.47 hour
Trolling speed 1300 ±100 r/min
Engine
Number of engines 1
Engine type Liquid cooled 4-stroke, DOHC
Number of cylinders 4
Engine displacement 1812 cm 3
Bore × stroke 86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio 11.0 : 1
Valve clearance-intake (cold) 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold) 0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system Wet sump
Cooling system Water
Starting system Electric

142
