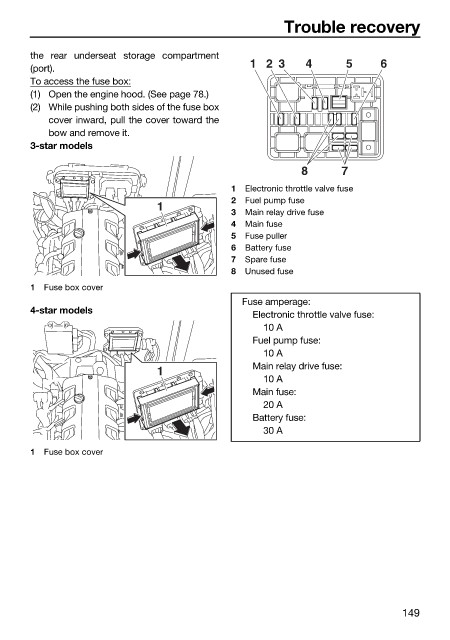

Trouble recovery

the rear underseat storage compartment
(port). 12 3 4 5 6
To access the fuse box:
(1) Open the engine hood. (See page 78.)
(2) While pushing both sides of the fuse box
cover inward, pull the cover toward the
bow and remove it.
3-star models

8 7
1 Electronic throttle valve fuse
2 Fuel pump fuse
1
3 Main relay drive fuse
4 Main fuse
5 Fuse puller
6 Battery fuse
7 Spare fuse
8 Unused fuse
1 Fuse box cover
Fuse amperage:
4-star models
Electronic throttle valve fuse:
10 A
Fuel pump fuse:
10 A
Main relay drive fuse:
1
10 A
Main fuse:
20 A
Battery fuse:
30 A

1 Fuse box cover

149
