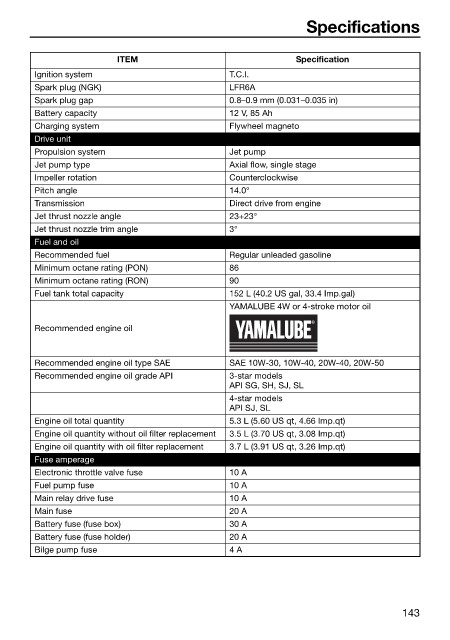

Specifications

ITEM Specification
Ignition system T.C.I.
Spark plug (NGK) LFR6A
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Battery capacity 12 V, 85 Ah
Charging system Flywheel magneto
Drive unit
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise
Pitch angle 14.0°
Transmission Direct drive from engine
Jet thrust nozzle angle 23+23°
Jet thrust nozzle trim angle 3°
Fuel and oil
Recommended fuel Regular unleaded gasoline
Minimum octane rating (PON) 86
Minimum octane rating (RON) 90
Fuel tank total capacity 152 L (40.2 US gal, 33.4 Imp.gal)
YAMALUBE 4W or 4-stroke motor oil
Recommended engine oil

Recommended engine oil type SAE SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API 3-star models
API SG, SH, SJ, SL
4-star models
API SJ, SL
Engine oil total quantity 5.3 L (5.60 US qt, 4.66 Imp.qt)
Engine oil quantity without oil filter replacement 3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil quantity with oil filter replacement 3.7 L (3.91 US qt, 3.26 Imp.qt)
Fuse amperage
Electronic throttle valve fuse 10 A
Fuel pump fuse 10 A
Main relay drive fuse 10 A
Main fuse 20 A
Battery fuse (fuse box) 30 A
Battery fuse (fuse holder) 20 A
Bilge pump fuse 4 A
