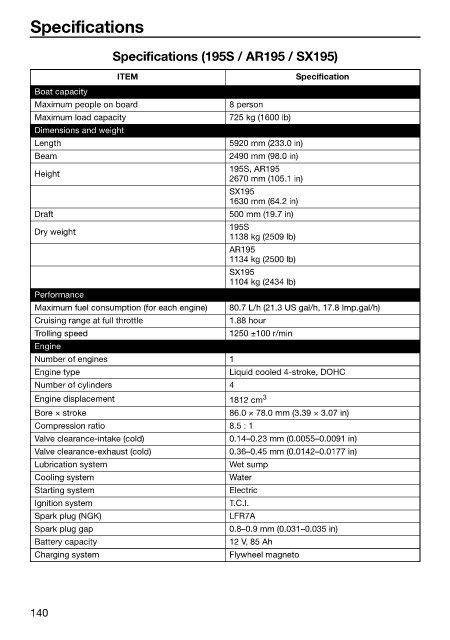

Specifications

Specifications (195S / AR195 / SX195)

ITEM Specification
Boat capacity
Maximum people on board 8 person
Maximum load capacity 725 kg (1600 lb)
Dimensions and weight
Length 5920 mm (233.0 in)
Beam 2490 mm (98.0 in)
195S, AR195
Height
2670 mm (105.1 in)
SX195
1630 mm (64.2 in)
Draft 500 mm (19.7 in)
195S
Dry weight
1138 kg (2509 lb)
AR195
1134 kg (2500 lb)
SX195
1104 kg (2434 lb)
Performance
Maximum fuel consumption (for each engine) 80.7 L/h (21.3 US gal/h, 17.8 Imp.gal/h)
Cruising range at full throttle 1.88 hour
Trolling speed 1250 ±100 r/min
Engine
Number of engines 1
Engine type Liquid cooled 4-stroke, DOHC
Number of cylinders 4
Engine displacement 1812 cm 3
Bore × stroke 86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio 8.5 : 1
Valve clearance-intake (cold) 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold) 0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system Wet sump
Cooling system Water
Starting system Electric
Ignition system T.C.I.
Spark plug (NGK) LFR7A
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Battery capacity 12 V, 85 Ah
Charging system Flywheel magneto
