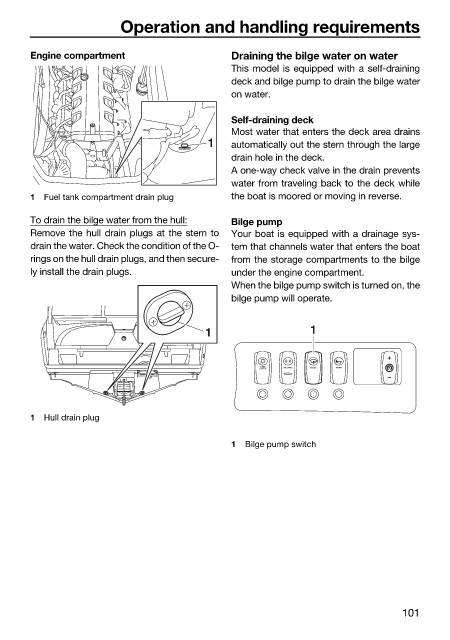

Operation and handling requirements

Engine compartment Draining the bilge water on water
This model is equipped with a self-draining
deck and bilge pump to drain the bilge water
on water.

Self-draining deck
Most water that enters the deck area drains
1 automatically out the stern through the large
drain hole in the deck.
A one-way check valve in the drain prevents
water from traveling back to the deck while
1 Fuel tank compartment drain plug the boat is moored or moving in reverse.
To drain the bilge water from the hull: Bilge pump
Remove the hull drain plugs at the stern to Your boat is equipped with a drainage sys-
drain the water. Check the condition of the O- tem that channels water that enters the boat
rings on the hull drain plugs, and then secure- from the storage compartments to the bilge
ly install the drain plugs. under the engine compartment.
When the bilge pump switch is turned on, the
bilge pump will operate.

1 1

CTSY
LIGHTS NAV/ANC BILGE HORN

1 Hull drain plug

1 Bilge pump switch

101
