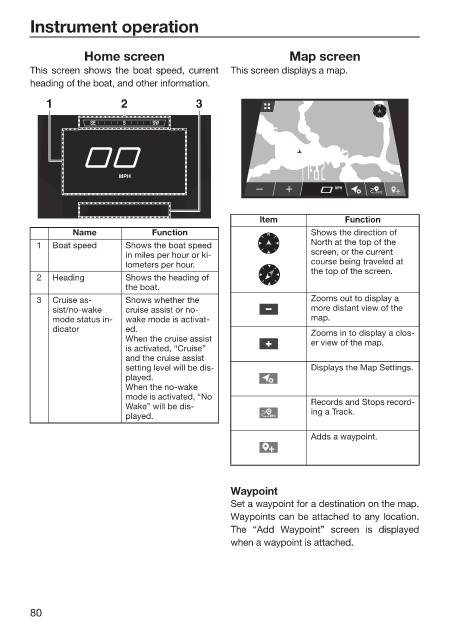

Instrument operation

Home screen Map screen
This screen shows the boat speed, current This screen displays a map.
heading of the boat, and other information.

1 2 3
SE S SW

MPH
MPH
REC
Item Function
Name Function Shows the direction of
1 Boat speed Shows the boat speed North at the top of the
in miles per hour or ki- screen, or the current
lometers per hour. course being traveled at
the top of the screen.
2 Heading Shows the heading of
the boat.
3 Cruise as- Shows whether the Zooms out to display a
sist/no-wake cruise assist or no- more distant view of the
mode status in- wake mode is activat- map.
dicator ed. Zooms in to display a clos-
When the cruise assist er view of the map.
is activated, “Cruise”
and the cruise assist
setting level will be dis- Displays the Map Settings.
played.
When the no-wake
mode is activated, “No
Wake” will be dis- Records and Stops record-
played. REC ing a Track.
Adds a waypoint.

Waypoint
Set a waypoint for a destination on the map.
Waypoints can be attached to any location.
The “Add Waypoint” screen is displayed
when a waypoint is attached.

80
