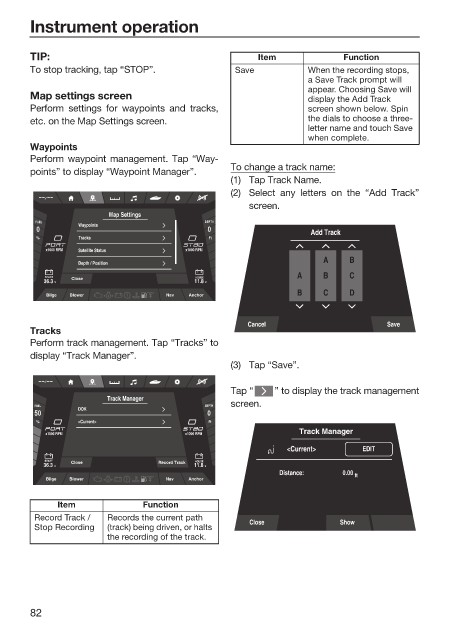

Page 90 - LIT-18626-12-95

Instrument operation

TIP: Item Function
To stop tracking, tap “STOP”. Save When the recording stops,
a Save Track prompt will
appear. Choosing Save will
Map settings screen display the Add Track
Perform settings for waypoints and tracks, screen shown below. Spin
etc. on the Map Settings screen. the dials to choose a three-
letter name and touch Save
when complete.
Waypoints
Perform waypoint management. Tap “Way-
To change a track name:
points” to display “Waypoint Manager”.
(1) Tap Track Name.
(2) Select any letters on the “Add Track”
screen.
Map Settings
FUEL DEPTH
Waypoints
0 0
Add Track
% Tracks Ft
x1000 RPM Satellite Status x1000 RPM
A B
Depth / Position
A B C
START HOUSE
36.3 V Close 11.8 V
B C D
Bilge Blower Nav Anchor
Cancel Save
Tracks
Perform track management. Tap “Tracks” to
display “Track Manager”.
(3) Tap “Save”.
Tap “ ” to display the track management
Track Manager
FUEL DEPTH screen.
DOK
50 0
% <Current> Ft
Track Manager
x1000 RPM x1000 RPM
<Current> EDIT
START HOUSE
36.3 V Close Record Track 11.8 V
Distance: 0.00 ft
Bilge Blower Nav Anchor
Item Function
Record Track / Records the current path Close Show
Stop Recording (track) being driven, or halts
the recording of the track.

82
